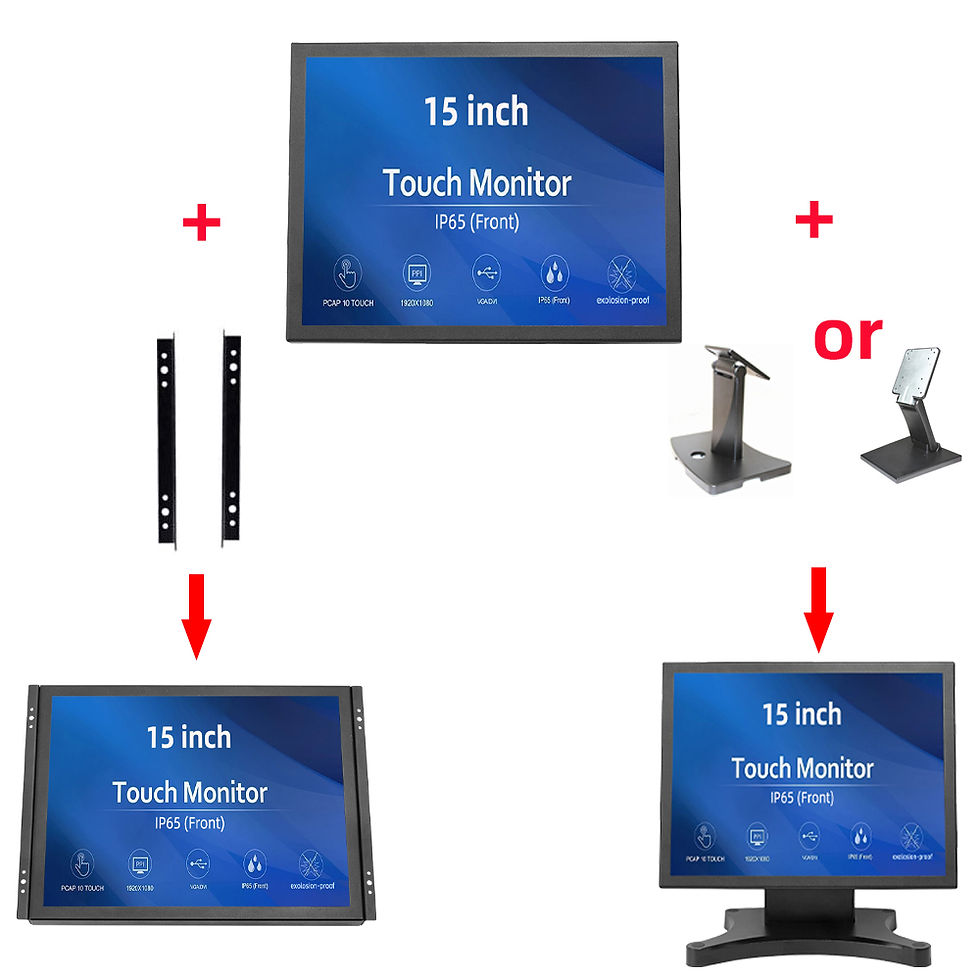

15 inch Flat Screen Touch Monitor Projected Capacitive Touch screens 10points to

15 inch Flat Screen Touch Monitor Projected Capacitive Touch screens 10points to

SeriesWater-proof and Open frame
LCD Type15” Active matrix TFT-LCD
Video InputVGA ,DVI and HDMI
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)304.128(H)×228.096(V)
Resolution1024×768@75Hz
Dot Pitch(mm)0.297×0.297
Nominal Input Voltage VDD+3.3V(Typ)
Viewing angle (v/h)80°/80°
Contrast500:1
Luminance(cd/m2)250
Response Time(Rising)2s/6s
Support Color16.2M
Backlight MTBF(hr)50000
Touchscreen Specification
TypeProjected Capacitive touch screen
Multi touch10points touch
Touch Life Cycle10 millions
Touch Response time8ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA
External AC Power Adapter
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Environment
Operating Temp.050°C
Storage Temp.-2060°C
Operating RH:20%80%
Storage RH:10%90%
